Yamaha Ray Z

Name: Yamaha Ray Z
Brand: Yamaha
SKU: 343
Availability: Discontinued
Rating: 4.3 (76 reviews)

4.3

76 Reviews Rate & Win

Overview Expert Opinion Similar Scooters Colours Mileage Specs User Reviews News Dealers Used

Key specs

113 cc
45 kmpl
104 kg
760 mm

Last known Avg. Ex-showroom price

₹ 53,141

Yamaha Ray Z is now discontinued in India.

Discontinued

13 ImagesSee Images
4 ColoursSee Colours

Yamaha Ray Z Summary

Ray Z key highlights
Engine Capacity	113 cc
Mileage Owner Reported Mileage: BikeWale collects mileage information from bike owners to provide you with the actual mileage that you might get.	45 kmpl
Kerb Weight	104 kg
Seat Height	760 mm
Fuel Tank Capacity	5 litres
Max Power	7 bhp

About Ray Z

The Yamaha Ray has been a fairly successful scooter but was specifically targeted at female riders. To capture a greater share of the market, Yamaha launched the Ray-Z in May last year, which is nothing but the Ray with a masculine appeal.

Mechanically, the scooter remains the same but carries some restyled bits and louder graphics. The Ray-Z features a smoked-finish visor, a new instrument panel, a carbon fibre patterned seat and aluminum rear grab-bars. The front features V-shaped headlights while the rear houses a stylish tail lamp assembly with clear-lens indicators. Despite the lean and sculpted body, the underseat storage, with a 15.5-litre capacity, is spacious enough for a full face helmet and the floor board has enough place for your legs.

The Ray-Z continues to be powered by the standard 113cc engine which produces 7bhp and 8Nm of torque via a CVT gearbox. Yamaha claims that the roller-rockers and carburetor have been updated while the suspension has been tweaked. The engine is refined and suitable for city commute. The Ray-Z retains drum brakes on both wheels and now a ‘UBS’ system which links both the front and rear brakes when the rear is applied, is an optional extra for Rs 500 more. This will become standard fitment, come April.

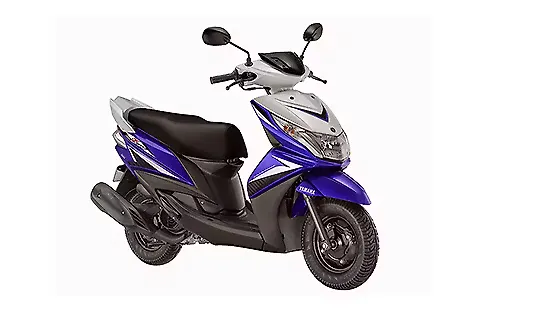

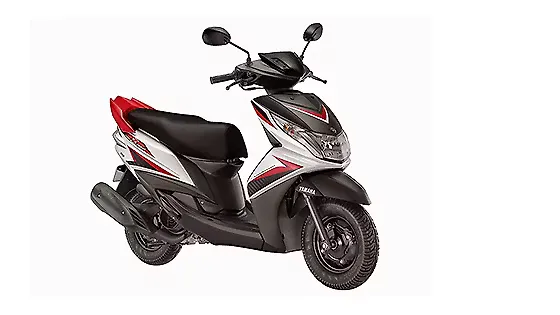

Priced at approximately Rs 52,000 (ex-showroom Mumbai) the Ray-Z is offered in four colour schemes; red, blue, white, and dark blue. It joins the crowd of other scooters like the Honda Activa 5G, Honda Dio, TVS Wego, Hero Maestro and TVS Jupiter.

Expert Opinion

Good Things

The aggressive styling does make it look nice
The ride quality is on the softer side
The 110cc engine is known for its refinement

Could be Better

The instrument cluster is boring to look at
Overall ride quality isn’t comfortable
Limited service reach

Yamaha Ray Z mileage

As reported by Ray Z owners, the real mileage of Yamaha Ray Z is 45 kmpl. As per ARAI, the average of Ray Z is 62 kmpl.

Ray Z mileage details

Ray Z Specifications & Features

Specifications

Power & Performance

Fuel Type Petrol

Max Power 7 bhp @ 7,500 rpm

Max Torque 8 Nm @ 5,000 rpm

Cooling System Air Cooled

Transmission Automatic

Transmission Type V belt automatic

Emission Standard Emission standards indicate the output from the exhaust that is permissible in a country. BS-IV

Displacement 113 cc

Cylinders 1

Bore 50 mm

Stroke 57 mm

Valves Per Cylinder 2

Compression Ratio --

Ignition C.D.I (Capacitor Discharge Ignition)

Spark Plugs 1 Per Cylinder

Gear Shifting Pattern Gear Shifting Pattern --

Clutch Dry, Centrifugal

Fuel Delivery System --

Fuel Tank Capacity 5 litres

Reserve Fuel Capacity These are estimated figures --

Riding Range Maximum distance a petrol bike can travel on a full fuel tank and an electric bike can travel on a full charge 225 Km

Mileage - ARAI 62 kmpl

Mileage - Owner Reported BikeWale collects mileage information from bike owners to provide you with the actual mileage that you might get. 45 kmpl

Top Speed These are estimated figures 86 Kmph

View more specs
Brakes, Wheels & Suspension

Braking System CBS, IBS, SBT, UBS, HBS - Combined braking of both front and rear wheel | ABS - Anti-lock braking system which can be just for front wheel (single channel) or both wheels (dual channel) or can be switched off (switchable) | E-ABS - Electronic assisted braking system | Standard - Cable operated UBS

Front Brake Type Drum

Front Brake Size 130 mm

Rear Tyre Size 90/100-10 53J

Tyre Type Tubeless

Radial Tyres No

Rear Brake Type Drum

Rear Brake Size 130 mm

Calliper Type --

Wheel Type Spoke

Front Wheel Size 10 inch

Rear Wheel Size 10 inch

Front Tyre Size 90/100-10 53J

Front Tyre Pressure (Rider) --

Rear Tyre Pressure (Rider) --

Front Tyre Pressure (Rider & Pillion) --

Rear Tyre Pressure (Rider & Pillion) --

Front Suspension Telescopic

Rear Suspension Unit swing

View more specs
Dimensions & Chassis

Kerb Weight 104 kg

Overall Length 1,835 mm

Overall Width 675 mm

Wheelbase 1,270 mm

Ground Clearance 128 mm

Seat Height 760 mm

Overall Height 1,090 mm

Chassis Type Underbone

View more specs
Manufacturer Warranty

Standard Warranty (Year) --

Standard Warranty (Kilometers) --

Features

Odometer Analogue

DRLs (Daytime running lights) --

Mobile App Connectivity --

Low Battery IndicatorYes

Pillion BackrestNo

Pillion GrabrailYes

GPS & Navigation --

USB charging port --

Front storage box --

Under seat storage --

AHO (Automatic Headlight On) --

Speedometer Analogue

Fuel Guage Yes

Tachometer --

Stand Alarm No

Stepped Seat No

No. of Tripmeters --

Tripmeter Type --

Low Fuel Indicator Yes

Low Oil Indicator Yes

Pillion SeatYes

Pillion FootrestYes

Digital Fuel GuageNo

Start TypeElectric Start

Shift LightNo

KillswitchNo

ClockYes

Battery12V,5.0Ah(10H)

Headlight TypeHalogen bulb

Brake/Tail LightLED Tail Lamp

Turn Signal12V, 10W X2

Pass LightNo

Additional features--

View more features
