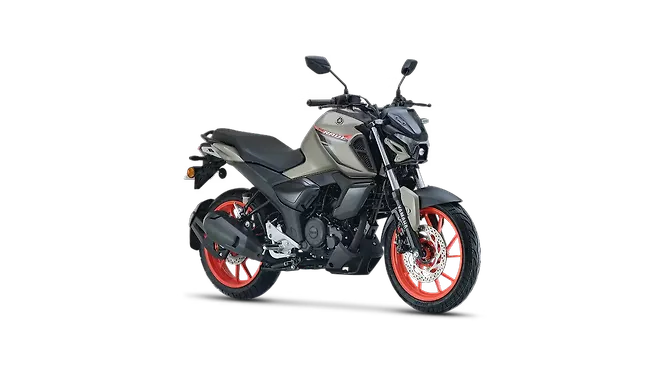

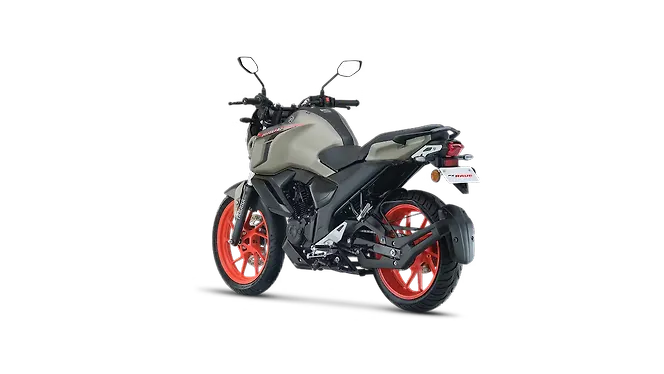

Yamaha FZ Rave

Specifications

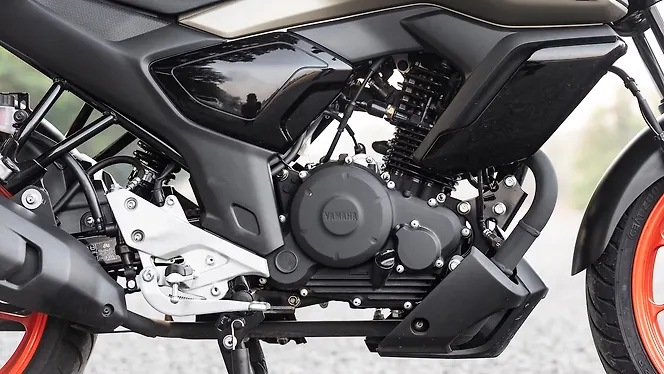

• Power & Performance

  • Displacement
    149 cc
  • Max Power
    12.2 bhp @ 7250 rpm
  • Max Torque
    13.3 Nm @ 5500 rpm
  • Top Speed
    -

  • Mileage - Owner Reported
    -
  • Transmission
    5 Speed Manual
  • Transmission Type
    Chain Drive
  • Gear Shifting Pattern
    1 Down 4 Up
  • Clutch
    Wet Multiplate
  • Riding Range
    -
  • Riding Modes
    No
  • Cylinders
    1
  • Valves Per Cylinder
    2
  • Cooling System
    Air Cooled
  • Bore
    57.3 mm
  • Stroke
    57.9 mm
  • Compression Ratio
    9.6 : 1
  • Spark Plugs
    1 Per Cylinder
  • Battery
    12V,3.0Ah(10HR)
  • Emission Standard
    BS6 Phase 2B
  • Fuel Type
    Petrol

  View More(+17)

  Thank you for your feedback.

  Was this helpful?

  ---

• Brakes & Wheels

  • Braking System
    Single Channel ABS
  • Front Brake Type
    Disc
  • Front Brake Size
    282 mm
  • Caliper - Front
    -

  • Rear Brake Type
    Disc
  • Rear Brake Size
    220 mm
  • Caliper - Rear
    -

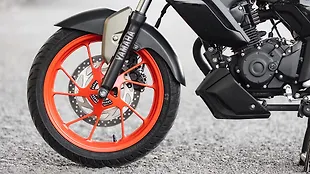

  • Wheel Type
    Alloy
  • Front Wheel Size
    17 inch
  • Rear Wheel Size
    17 inch
  • Front Tyre Size
    100/80 - 17
  • Rear Tyre Size
    140/60R - 17
  • Tyre Type
    Tubeless
  • Front Tyre Pressure (Rider)
    29 psi
  • Rear Tyre Pressure (Rider)
    33 psi
  • Front Tyre Pressure (Rider & Pillion)
    29 psi
  • Rear Tyre Pressure (Rider & Pillion)
    33 psi

  View More(+13)

  Thank you for your feedback.

  Was this helpful?

  ---

• Suspensions & Chassis

  • Front Suspension
    Telescopic Fork
  • Rear Suspension
    Swingarm
  • Front Suspension Preload Adjuster
    No
  • Rear Suspension Preload Adjuster
    Yes

  • Chassis Type
    Diamond

  View More(+1)

  Thank you for your feedback.

  Was this helpful?

  ---

• Dimensions

  • Kerb Weight
    136 kg
  • Seat Height
    790 mm
  • Seat Length
    -
  • Ground Clearance
    165 mm

  • Fuel Tank Capacity
    13 litres
  • Reserve Fuel Capacity
    1.7 litres
  • Overall Length
    1990 mm
  • Overall Width
    780 mm
  • Overall Height
    1080 mm
  • Wheelbase
    1330 mm

  View More(+6)

  Thank you for your feedback.

  Was this helpful?

  ---

• Manufacturer Warranty

  • Standard Warranty (Years)
    2 year
  • Standard Warranty (km)
    30000 km

  Thank you for your feedback.

  Was this helpful?

  ---

• Service & Maintenance Schedule

  • 1st Service
    1000 Kms/30 Days
  • 2nd Service
    4000 Kms/150 Days
  • 3rd Service
    7000 Kms/270 Days
  • 4th Service
    10000 Kms/390 Days

  Thank you for your feedback.

  Was this helpful?

  ---

•

  Report incorrect specifications

• Instrument Cluster

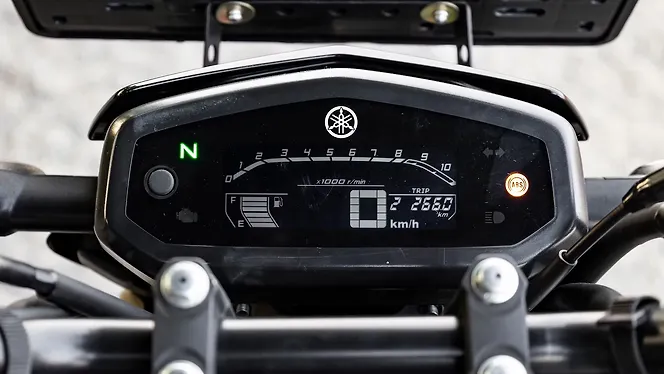

  • Instrument Console
    Digital
  • Touch Screen Display
    No
  • Display Size
    -
  • Digital Display Type
    LCD

  • Brightness Control
    -
  • Mobile Phone Connectivity
    No
  • GPS & Navigation
    No
  • Average Fuel Consumption
    -
  • Real Time Mileage Indicator
    -
  • Speedometer
    Digital
  • Odometer
    Digital
  • Fuel Gauge
    Digital
  • Distance to Empty
    -
  • Voice Assist
    No
  • Tripmeter Type
    Digital
  • No. of Tripmeters
    2
  • Tachometer
    Digital
  • Stand Alarm
    Yes
  • Gear Indicator
    Yes
  • Low Battery Indicator
    -
  • Low Fuel Indicator
    Yes
  • Low Oil Indicator
    -
  • Service Reminder Indicator
    Yes
  • Hazard Warning Indicator
    -
  • High Beam Indicator
    Yes
  • Engine Temperature Indicator
    Yes
  • Malfunction Indicator
    Yes
  • Average Speed
    -
  • OTA Updates
    Not Available
  • Call/SMS Alerts
    No
  • Clock
    Yes

  View More(+27)

  Thank you for your feedback.

  Was this helpful?

  ---

• Safety & Convenience

  • USB Charging Port
    No
  • Keyless Lock/Unlock
    No
  • Saree Guard
    Yes
  • Quickshifter
    No

  • Traction Control
    No
  • Cruise Control
    No
  • Start Type
    Self Start
  • Automatic Start Stop
    No
  • Silent Start
    No
  • Side Stand Engine/Motor Cut-off
    Yes
  • Silencer Cover
    Yes
  • Kill Switch
    Yes

  View More(+8)

  Thank you for your feedback.

  Was this helpful?

  ---

• Mobile App Monitoring

  • Vehicle Location Tracking
    No
  • Geo Fencing
    No

  Thank you for your feedback.

  Was this helpful?

  ---

• Lights

  • Headlight Type
    LED
  • Projector Headlamp
    Yes
  • Dual Lights
    No

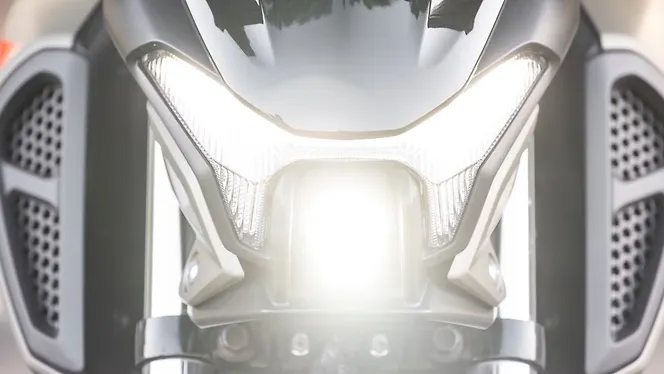

  • DRLs (Daytime Running Lights)
    Yes

  • Brake/Tail Light
    Halogen Bulb
  • Hazard Warning Lights
    -
  • Shift Light
    -
  • Pass Light
    Yes
  • Turn Signal
    LED

  View More(+5)

  Thank you for your feedback.

  Was this helpful?

  ---

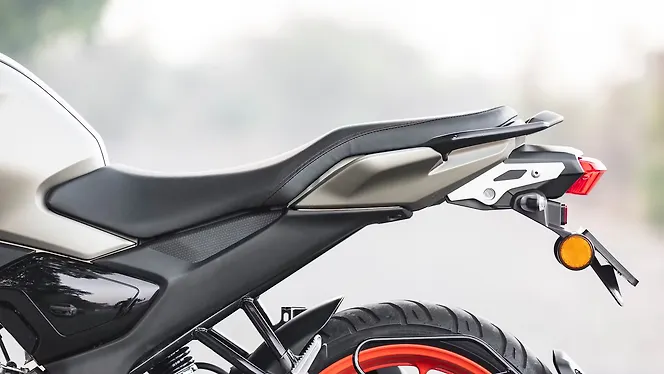

• Seat & Storage

  • Under Seat Storage
    No
  • Pillion Seat
    Stepped Seat
  • Pillion Backrest
    No
  • Pillion Footrest
    Yes

  • Pillion Grab Rail
    No

  View More(+1)

  Thank you for your feedback.

  Was this helpful?

  ---

• Additional Features

  • Additional Features
    -
