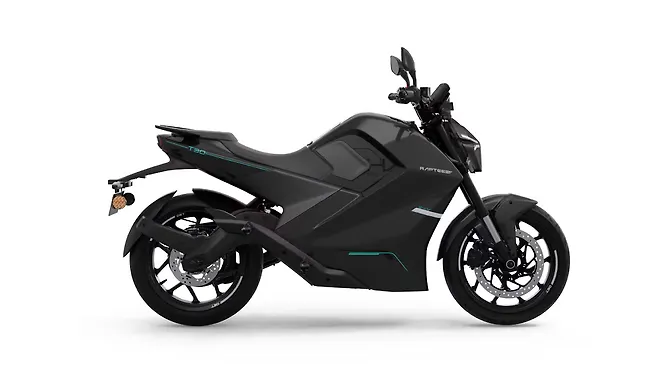

Raptee HV T30

Specifications

• Power & Performance

  • Max Power
    22 kW
  • Rated Power
    -
  • Max Torque
    70 Nm
  • Top Speed
    135 kmph

  • Acceleration
    0-60 kmph - 3.5 sec
  • Transmission
    Automatic
  • Riding Range
    200 km
  • Riding Range (Owner Reported)
    -
  • Riding Modes
    Comfort, Power and Sprint
  • Fuel Type
    Electric
  • Motor Type
    IPMSM
  • Motor IP Rating (Water & Dust Resistance)
    IP67
  • Gradeability
    -
  • Water Wading Limit
    500 mm

  View More(+10)

  Thank you for your feedback.

  Was this helpful?

  ---

• Battery & Charging

  • Battery Capacity
    5.4 kWh
  • Charging Time
    0-80% - 1 hr
  • Battery Portability
    1 fixed battery - 5.4 kWh
  • Fast Charging Availability
    Yes

  • Fast Charging Time
    0-80% - 0.36 hr
  • Fast Charger Cost
    Not Included in the Vehicle Price
  • Battery Type
    Li-ion
  • Portable Battery
    No
  • No. Of Batteries
    1
  • Swappable Battery
    No
  • Battery IP Rating
    IP67
  • Charger Type
    Portable Charger
  • Charger Output
    -
  • Charger Cost
    No additional cost (Included in the vehicle price)

  View More(+10)

  Thank you for your feedback.

  Was this helpful?

  ---

• Brakes & Wheels

  • Braking System
    Dual Channel ABS

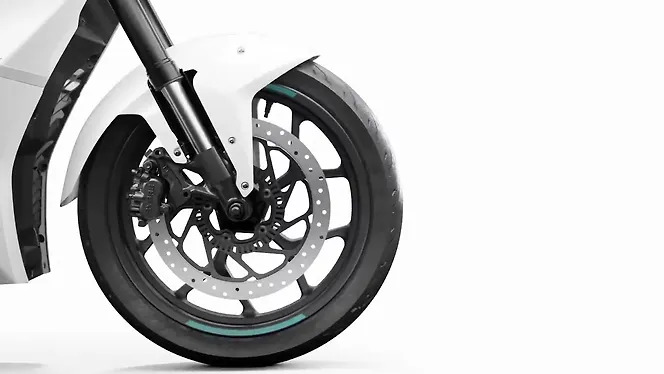

  • Front Brake
    Disc, 320 mm, 2 piston caliper
  • Rear Brake
    Disc, 230 mm, 1 piston caliper
  • Wheel Type
    Alloy

  • Wheel Size
    Front - 17 inch, Rear - 17 inch
  • Tyre Size
    Front - 110/70 - R17, Rear - 150/60 - R17
  • Tyre Type
    Tubeless
  • Tyre Pressure (Rider Only)
    -
  • Tyre Pressure (Rider & Pillion)
    -

  View More(+5)

  Thank you for your feedback.

  Was this helpful?

  ---

• Suspensions & Chassis

  • Front Suspension
    USD fork 37mm
  • Rear Suspension
    Preload Adjustable Monoshock
  • Front Suspension Preload Adjuster
    -
  • Rear Suspension Preload Adjuster
    Yes

  • Chassis Type
    Steel Trellis Frame

  View More(+1)

  Thank you for your feedback.

  Was this helpful?

  ---

• Dimensions

  • Kerb Weight
    177 kg
  • Seat Height
    790 mm
  • Seat Length
    -
  • Ground Clearance
    161 mm

  • Overall Dimensions (LxWxH)
    - x - x 1102 mm
  • Wheelbase
    1420 mm
  • Carrying Capacity
    -

  View More(+3)

  Thank you for your feedback.

  Was this helpful?

  ---

• Manufacturer Warranty

  • Battery Warranty
    8 year or 80,000 km
  • Motor Warranty
    3 year

  Thank you for your feedback.

  Was this helpful?

  ---

•

  Report incorrect specifications

• Instrument Cluster

  • Instrument Console
    7 " TFT Touch Screen Display with Brightness Control
  • Mobile Phone Connectivity
    Bluetooth and Internet
  • GPS & Navigation
    Map Navigation
  • Speedometer
    Digital

  • Odometer
    Digital
  • Distance to Empty
    -
  • Voice Assist
    -
  • Tripmeter
    Digital
  • Stand Alarm
    Yes
  • Low Battery Indicator
    Yes
  • Hazard Warning Indicator
    -
  • High Beam Indicator
    -
  • Malfunction Indicator
    Yes
  • Average Speed
    -
  • OTA Updates
    Available
  • Call/SMS Alerts
    Yes
  • Clock
    Yes

  View More(+13)

  Thank you for your feedback.

  Was this helpful?

  ---

• Safety & Convenience

  • USB Charging Port
    -
  • Keyless Lock/Unlock
    Yes
  • Cruise Control
    -
  • Start Type
    Self Start

  • Side Stand Engine/Motor Cut-off
    Yes
  • Anti Theft System
    -
  • Kill Switch
    -
  • Hill Assist
    -
  • Reverse Mode
    Parking Assist
  • Artificial Sound
    -
  • Regenerative Braking
    Yes
  • Start/Stop Button
    Yes

  View More(+8)

  Thank you for your feedback.

  Was this helpful?

  ---

• Mobile App Monitoring

  • Battery Status
    Yes
  • Live Charging Status
    Yes
  • Nearby Charging Stations
    Yes
  • Vehicle Location Tracking
    Live Location

  • Tow & Theft Notifications
    -
  • Geo Fencing
    -

  View More(+2)

  Thank you for your feedback.

  Was this helpful?

  ---

• Lights

  • Headlight
    LED Headlamp
  • DRLs (Daytime Running Lights)
    Yes
  • Brake/Tail Light
    LED
  • Hazard Warning Lights
    -

  • Pass Light
    Yes
  • Turn Signal
    LED

  View More(+2)

  Thank you for your feedback.

  Was this helpful?

  ---

• Seat & Storage

  • Under Seat Storage
    -
  • Pillion Seat
    Split Seat
  • Pillion Comfort
    Footrest, Grab rail

  Thank you for your feedback.

  Was this helpful?

  ---

• Additional Features

  • Additional Features
    Ride-by-wire, Music Control, Dark and light mode, AI Trip planner, Push navigation, Vehicle charger limit, Smart Watch Connectivity, Roadside Assistance, Ping My Raptee, Find My Bike

  Thank you for your feedback.

  Was this helpful?

  ---

•

  Report incorrect features
