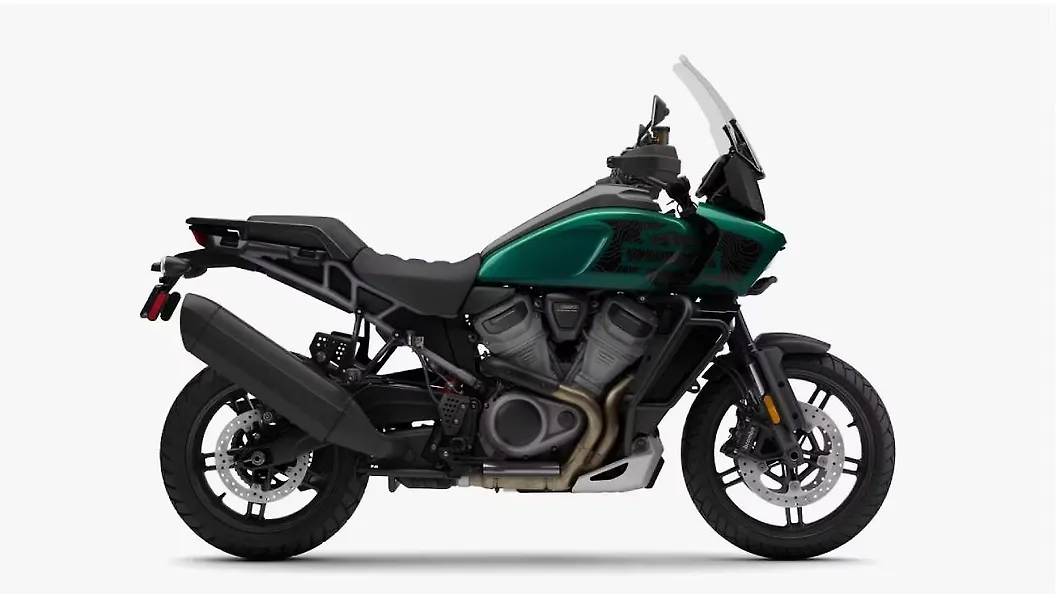

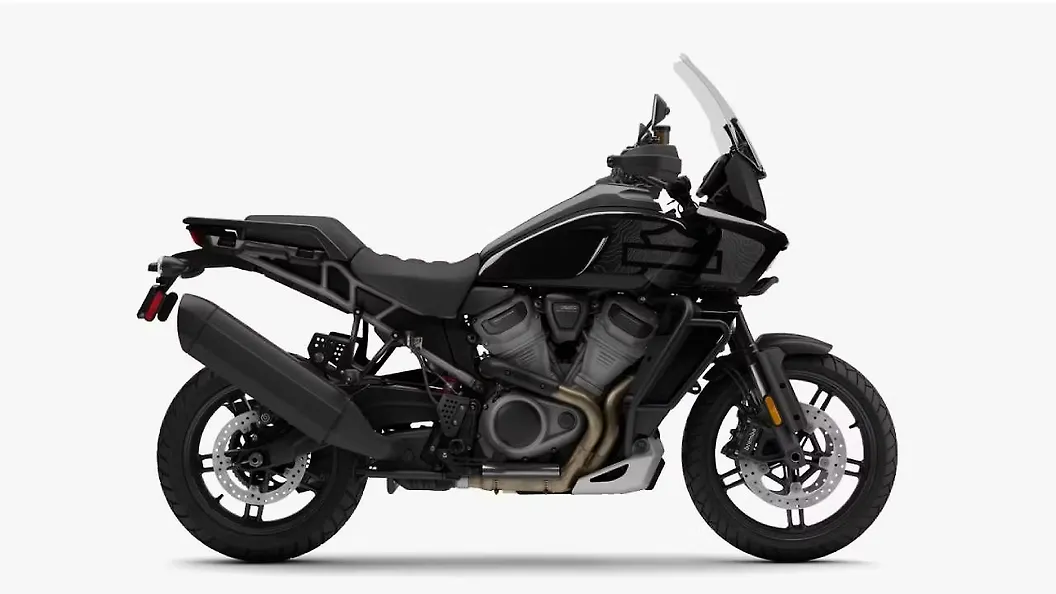

Harley-Davidson PAN America 1250 Special [2024]

Specifications

• Power & Performance

  • Displacement
    1252 cc
  • Max Power
    150.19 bhp @ 8750 rpm
  • Max Torque
    128 Nm @ 6750 rpm
  • Top Speed
    200 kmph

  • Mileage - ARAI
    18 kmpl
  • Mileage - Owner Reported
    -
  • Transmission
    6 Speed Manual
  • Transmission Type
    Chain Drive
  • Gear Shifting Pattern
    1 Down 5 Up
  • Clutch
    Assist And Slipper Clutch
  • Riding Range
    382 km
  • Riding Modes
    Sport, Road, Rain, Off-Road, and Off-Road Plus
  • Cylinders
    2
  • Valves Per Cylinder
    4
  • Cooling System
    Liquid Cooled
  • Bore
    105 mm
  • Stroke
    72.3 mm
  • Compression Ratio
    13.0:1
  • Spark Plugs
    1 Per Cylinder
  • Battery
    12V, 12Ah
  • Emission Standard
    BS6 Phase 2
  • Fuel Type
    Petrol

  View More(+18)

  Thank you for your feedback.

  Was this helpful?

  ---

• Brakes & Wheels

  • Braking System
    Dual Channel ABS
  • Front Brake Type
    Disc
  • Front Brake Size
    320 mm
  • Caliper - Front
    4 Piston

  • Rear Brake Type
    Disc
  • Rear Brake Size
    280 mm
  • Caliper - Rear
    1 Piston
  • Wheel Type
    Alloy
  • Front Wheel Size
    19 inch
  • Rear Wheel Size
    17 inch
  • Front Tyre Size
    120/70 - R19
  • Rear Tyre Size
    170/60 - R17
  • Tyre Type
    Tubeless
  • Front Tyre Pressure (Rider)
    36 psi
  • Rear Tyre Pressure (Rider)
    42 psi
  • Front Tyre Pressure (Rider & Pillion)
    36 psi
  • Rear Tyre Pressure (Rider & Pillion)
    42 psi

  View More(+13)

  Thank you for your feedback.

  Was this helpful?

  ---

• Suspensions & Chassis

  • Front Suspension
    47mm inverted fork with electronically adjustable semi-active damping control
  • Rear Suspension
    Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping
  • Front Suspension Preload Adjuster
    Yes
  • Rear Suspension Preload Adjuster
    Yes

  • Chassis Type
    Stressed-member, high strength low alloy steel trellis frame

  View More(+1)

  Thank you for your feedback.

  Was this helpful?

  ---

• Dimensions

  • Kerb Weight
    258 kg
  • Seat Height
    875 mm
  • Seat Length
    -
  • Ground Clearance
    175 mm

  • Fuel Tank Capacity
    21.2 litres
  • Reserve Fuel Capacity
    3.8 litres
  • Overall Length
    2270 mm
  • Overall Width
    965 mm
  • Overall Height
    1510 mm
  • Wheelbase
    1585 mm

  View More(+6)

  Thank you for your feedback.

  Was this helpful?

  ---

• Manufacturer Warranty

  • Standard Warranty
    2 year
  • Standard Warranty
    Unlimited km

  Thank you for your feedback.

  Was this helpful?

  ---

• Instrument Cluster

  • Instrument Console
    Digital
  • Touch Screen Display
    Yes
  • Display Size
    -
  • Digital Display Type
    -

  • Brightness Control
    -
  • Mobile Phone Connectivity
    Yes
  • GPS & Navigation
    Yes
  • Average Fuel Consumption
    -
  • Real Time Mileage Indicator
    -
  • Speedometer
    Digital
  • Odometer
    Digital
  • Fuel Gauge
    Digital
  • Distance to Empty
    Yes
  • Voice Assist
    -
  • Tripmeter Type
    Digital
  • No. of Tripmeters
    2
  • Tachometer
    Digital
  • Stand Alarm
    Yes
  • Gear Indicator
    Yes
  • Low Battery Indicator
    Yes
  • Low Fuel Indicator
    Yes
  • Low Oil Indicator
    Yes
  • Service Reminder Indicator
    Yes
  • Hazard Warning Indicator
    Yes
  • High Beam Indicator
    Yes
  • Engine Temperature Indicator
    Yes
  • Malfunction Indicator
    Yes
  • Average Speed
    Yes
  • OTA Updates
    Not Available
  • Call/SMS Alerts
    Yes
  • Clock
    Yes

  View More(+27)

  Thank you for your feedback.

  Was this helpful?

  ---

• Safety & Convenience

  • USB Charging Port
    Yes
  • Keyless Lock/Unlock
    -
  • Saree Guard
    Yes
  • Quickshifter
    -

  • Traction Control
    Yes
  • Cruise Control
    Yes
  • Start Type
    Self Start
  • Automatic Start Stop
    -
  • Silent Start
    -
  • Side Stand Engine/Motor Cut-off
    -
  • Silencer Cover
    Yes
  • Kill Switch
    Yes

  View More(+8)

  Thank you for your feedback.

  Was this helpful?

  ---

• Mobile App Monitoring

  • Vehicle Location Tracking
    -
  • Geo Fencing
    No

  Thank you for your feedback.

  Was this helpful?

  ---

• Lights

  • Headlight Type
    LED
  • Projector Headlamp
    -
  • Dual Lights
    -
  • DRLs (Daytime Running Lights)
    Yes

  • Brake/Tail Light
    LED
  • Hazard Warning Lights
    Yes
  • Shift Light
    No
  • Pass Light
    Yes
  • Turn Signal
    LED

  View More(+5)

  Thank you for your feedback.

  Was this helpful?

  ---

• Seat & Storage

  • Under Seat Storage
    No
  • Pillion Seat
    Stepped Seat
  • Pillion Backrest
    No
  • Pillion Footrest
    Yes

  • Pillion Grab Rail
    Yes

  View More(+1)

  Thank you for your feedback.

  Was this helpful?

  ---

• Additional Features

  • Additional Features
    6.8 inch TFT Instrument Cluster, Adjustable Ride Height, Tire Pressure Monitoring System, Vehicle Hold Control
